Ultrasonic compact cleaners - UC10

Description ultrasonic cleaners



The basis of UC is ultrasonic convertor, which is attached to the bottom of cleaning tank. Ultrasonic convertor is a source of mechanical and acoustic energy that is transferred to the bottom of the cleaning liquid and it makes an ultrasonic field.

As a result of changing acoustic pressure and underpressure in liquid occurs so called cavitation and consequently the bond between dirt and cleaned object‘s surface is disrupted. Because cavitation occurs in the entire volume of liquid, intensive cleaning is realized also, with other method of cleaning poorly accessible places, in corners, hollows, etc.



Flammable cleaning liquid can not be use in cleaners UC10.



Generally production cleaners with capacity 9 - 48 liters with welded tank

Type Capacity
[ l ]
Generator power
[ W ]
Healing power
[ W ]
UC10D09W 9 250 750
UC10D13W 13 300 750
UC10D17W 17 350 1500
UC10D20W 20 400 1500
UC10D27W 27 500 1500
UC10D48W 48 600 1500





Parameter ultrasonic cleaner Digital controlled
UC10D
Analog controlled
UC10A
Supply voltage / frequency 230V ±10% / 50-60 Hz
Maximum US power see the table
Ultrasound frequency listed on the label (standard 40 kHz)
IP code IP 23
Temperature work range +5°C to +40°C
Timer (adjustable) 30 sec to 99 min 30 sec to 30 min
US power regulation 50% to 99% no
Funkcion DEGAS * yes no
Heating of cleaning liquid yes no
Max. adjustable temperature of liquid 70 °C no
Equipments are manufactured in compliance with norms

STN EN 61010-1: 2004

STN EN 61000-6-3: 2007

STN EN 61000-6-2: 2006



* DEGAS function helps in removal gases from cleaning liquids, because soluble gas minimize efect of cleaning in the liquid.



Measurements ultrasonic cleaners

capacity [l] S1 S2 S3 S4 S5 S6 S7 S8
9 336 350 395 min 110 345 277 298 294
13 365 378 423 min 110 395 335 348 353
17 365 378 423 min 110 395 335 348 353
20 540 553 598 min 110 395 335 348 353
27 540 553 598 min 110 395 335 348 353
48 540 553 598 min 110 560 335 348 353



Welded tank

capacity [l] L1 L2 L3
9 278 218 150
13 308 278 150
17 308 278 200
20 483 278 150
27 483 278 200
48 483 278 360

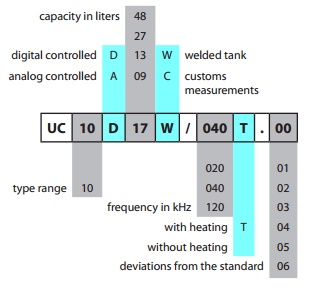

Marking of US cleaners with digital controlls

Basket

capacity [l] K1 K2 K3
9 235 180 100
13 265 225 100
17 265 225 130
20 435 235 100
27 435 235 130
48 435 235 290

Marking of basket
