Adaptéry ADA

  • Power output – up to 12 W
  • Self-adhesive mounting
  • Regulated output voltage
  • Output voltage range from 3,1 V to 48 V
  • Input – double-insulated twin-core power cable
  • Output – insulated twin-core cable
  • IP20 protection rating
  • Power output – up to 16 W
  • Self-adhesive mounting
  • Regulated output voltage
  • Output voltage range from 3,1 V to 48 V
  • Input – double-insulated twin-core power cable
  • Output – insulated twin-core cable
  • IP20 protection rating

The converters are designed for general-purpose use to power electrical and electronic equipment with DC voltage in indoor, non-explosive environments. Due to the galvanically isolated output, these units can be used as negative voltage sources or interconnected to create symmetrical or multi-level power supplies. The output voltage can range from 3.1 V to 48 V.

The nominal output voltages and respective maximum output currents are listed in the table. The converter is protected against short-term output short circuits. Input connections are made via a double-insulated twin-core cable. The output features a red-and-black twin-core cable.

The adhesive mounting method, which requires no tools or operations such as drilling, is particularly advantageous for retrofitting electrical and electronic equipment—for example, when placing the power supply directly inside a security camera housing.

Table 2: Documents
Ikona Brochure 12W
Ikona Brochure 16W
Ikona Declaration of Conformity 12W
Ikona Declaration of Conformity 16W

Table 1: Technical parameters
Input Voltage 195 - 255 V AC
Operating temperature -15 °C to +40 °C
Output short-circuit protection <1 min. (short-term)
Dielectric Strength 3000 V AC
Protection Rating IP20
Dimensions 55 × 41 × 45 mm
Weight 80 g
Electrical Safety EN 60950-1:2003
EMC EN 55011+A1:2002
EN 61000-3-2:2002
EN 61000-3-3:2000+A1:2003
EN 61000-6-1:2003

Table 3: AC/DC Adapter Models 12ADA

Model Name Output Voltage Output Current Stability Ripple Noise
12ADA030/10.xx 3.1 V 1 A 2 % <70 mV <100 mV šš
12ADA050/10.xx 5 V 1 A 2 % <70 mV <100 mV šš
12ADA069/10.xx 6.9 V 1 A 2 % <70 mV <100 mV šš
12ADA090/10.xx 9 V 1 A 1 % <50 mV <100 mV šš

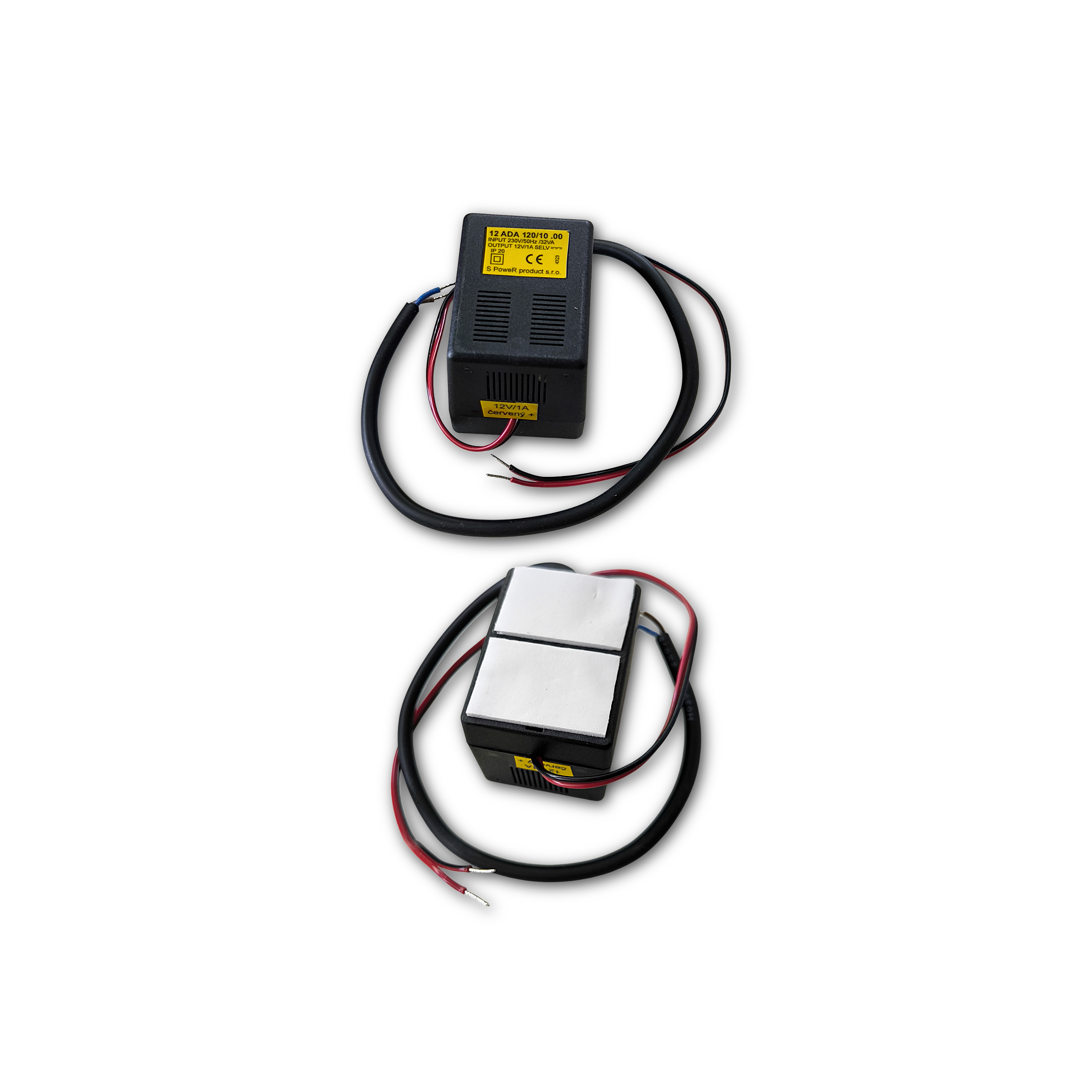

12ADA120/10.xx 12 V 1 A 1 % <50 mV <100 mV šš
12ADA138/08.xx 13.8 V 0.8 A 1 % <50 mV <100 mV šš

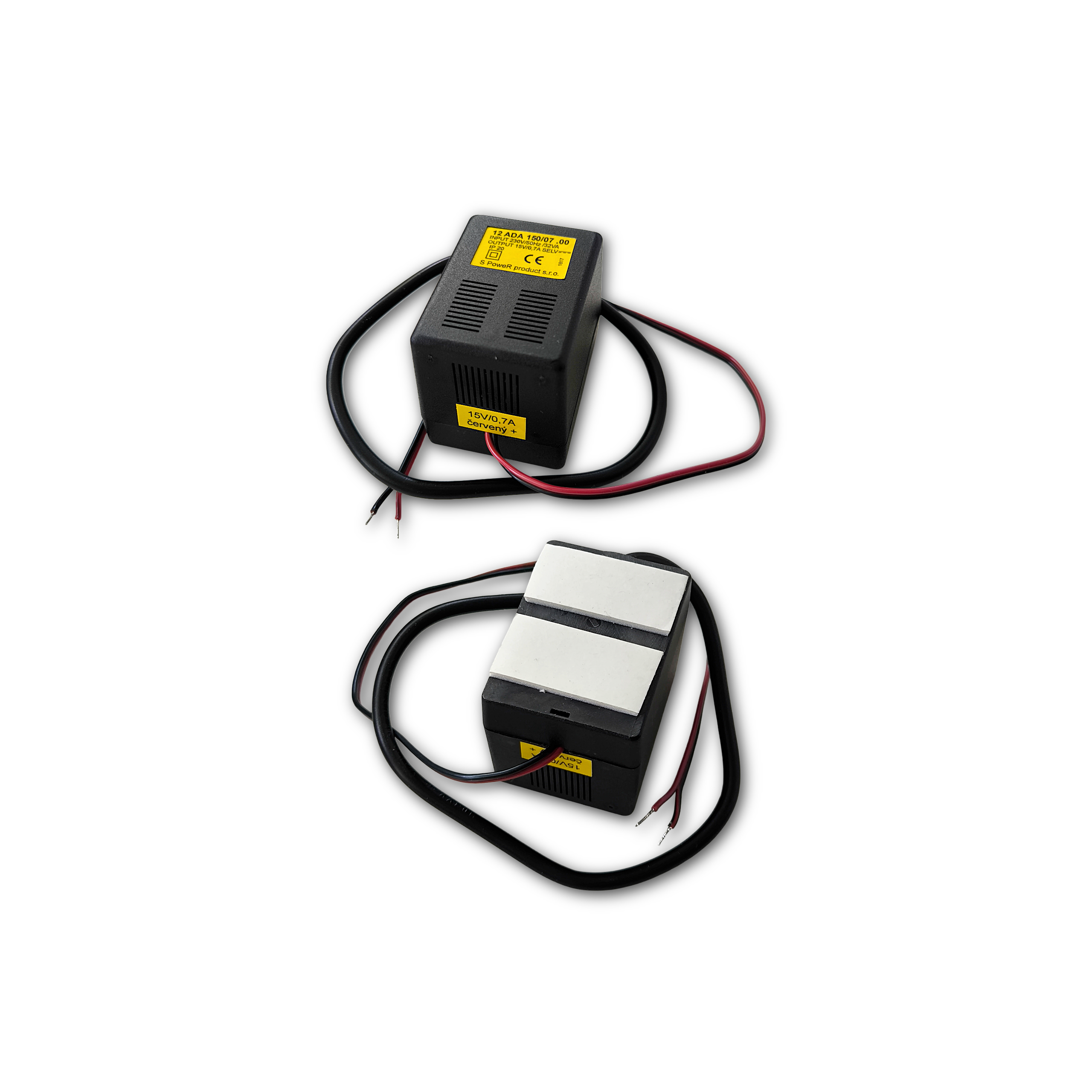

12ADA150/07.xx 15 V 0.7 A 1 % <60 mV <100 mV šš
12ADA180/06.xx 18 V 0.6 A 1 % <60 mV <100 mV šš
12ADA240/04.xx 24 V 0.4 A 1 % <60 mV <100 mV šš
12ADA276/03.xx 27.6 V 0.3 A 1 % <60 mV <100 mV šš
12ADA480/02.xx 48 V 0.25 A 1 % <70 mV <100 mV šš

.xx – the two-digit code specifies the type of connector on the output lead

Table 4: AC/DC Adapter Models 16ADA

Model Name Output Voltage Output Current Stability Ripple Noise
16ADA030/25.xx 3.1 V 2.5 A 2 % <130 mV <150 mV šš
16ADA050/25.xx 5.1 V 2.5 A 2 % <130 mV <150 mV šš
16ADA060/25.xx 6 V 2.5 A 2 % <120 mV <150 mV šš
16ADA069/14.xx 6.9 V 1.4 A 2 % <120 mV <150 mV šš
16ADA090/14.xx 9 V 1.4 A 1 % <120 mV <150 mV šš
16ADA120/14.xx 12 V 1.4 A 1 % <120 mV <150 mV šš
16ADA138/12.xx 13.8 V 1.2 A 1 % <100 mV <100 mV šš
16ADA150/11.xx 15 V 1.1 A 1 % <100 mV <100 mV šš
16ADA180/09.xx 18 V 0.9 A 1 % <80 mV <100 mV šš
16ADA240/07.xx 24 V 0.7 A 1 % <80 mV <100 mV šš
16ADA276/06.xx 27.6 V 0.6 A 1 % <80 mV <100 mV šš
16ADA480/03.xx 48 V 0.3 A 1 % <120 mV <150 mV šš

.xx – the two-digit code specifies the type of connector on the output lead

Output connector configurations:

Option .00 – without connector
The output lead length is 30 cm.

Option .04
The output lead length is 30 cm.

Option .05
The output lead length is 30 cm.

Option .06
The output lead length is 30 cm.

Option .07
The output lead length is 30 cm.
